ASM911 Best Affordable Automatic Programmable Sewing Machine for Safety Harness, Cargo Lashing Belts and other Heavy-Weight Materials

Click here for DEMO video

$9,950.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

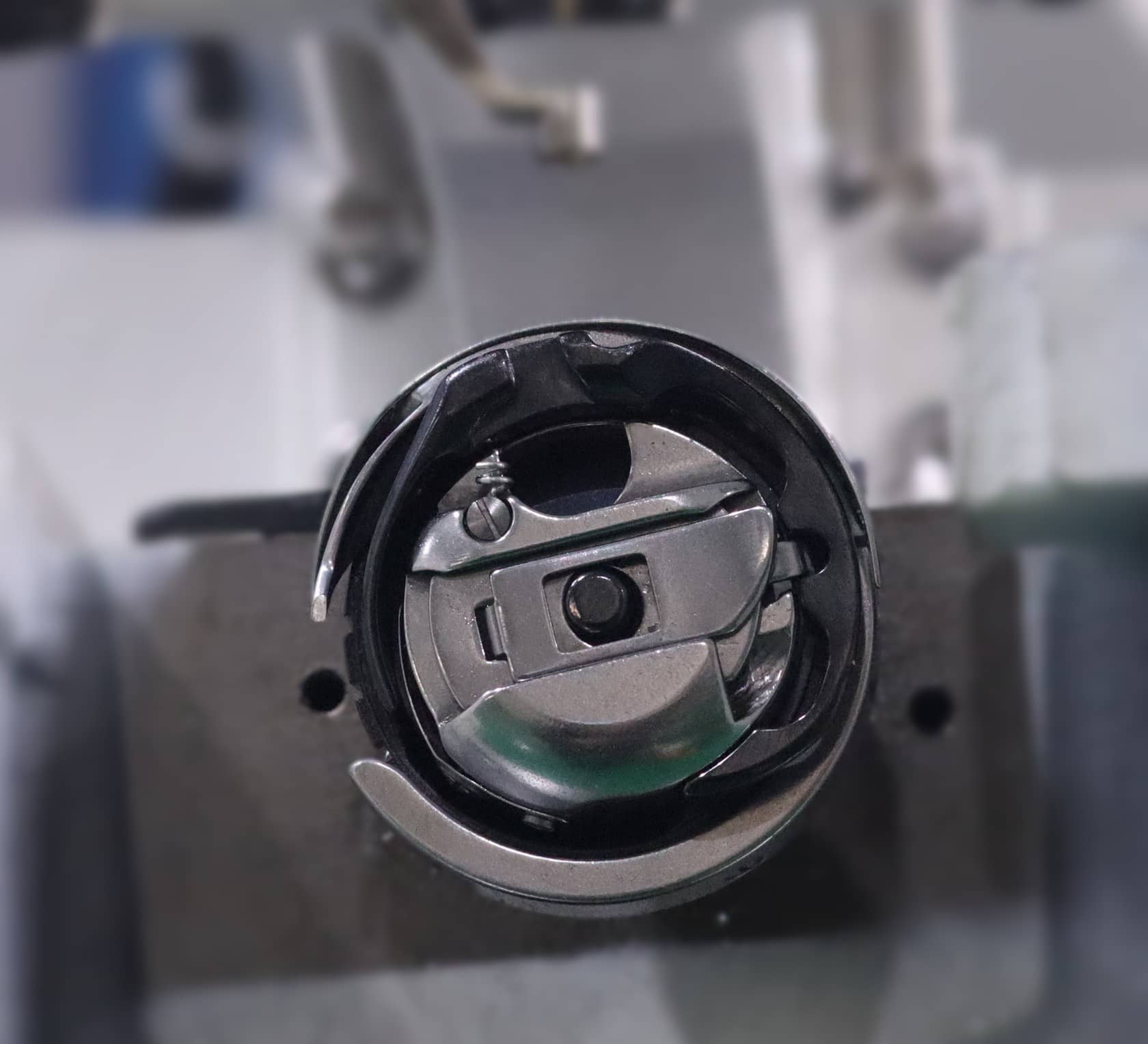

The machine is equipped as standard with a full-rotary 3-fold capacity hook. This 3 times bobbin capacity hook reduces the frequency of the bobbin thread replacement, enhancing efficiency in sewing with thick thread (up to metric size #10 ,T-270, V277, 840dx3);
Great Needle Penetration Powerful motor (750W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained;
The thread trimmer offers outstanding reliability and durability. The ideal application for the device is the sewing of height safety harness and cargo lashing belts with thick synthetic threads;

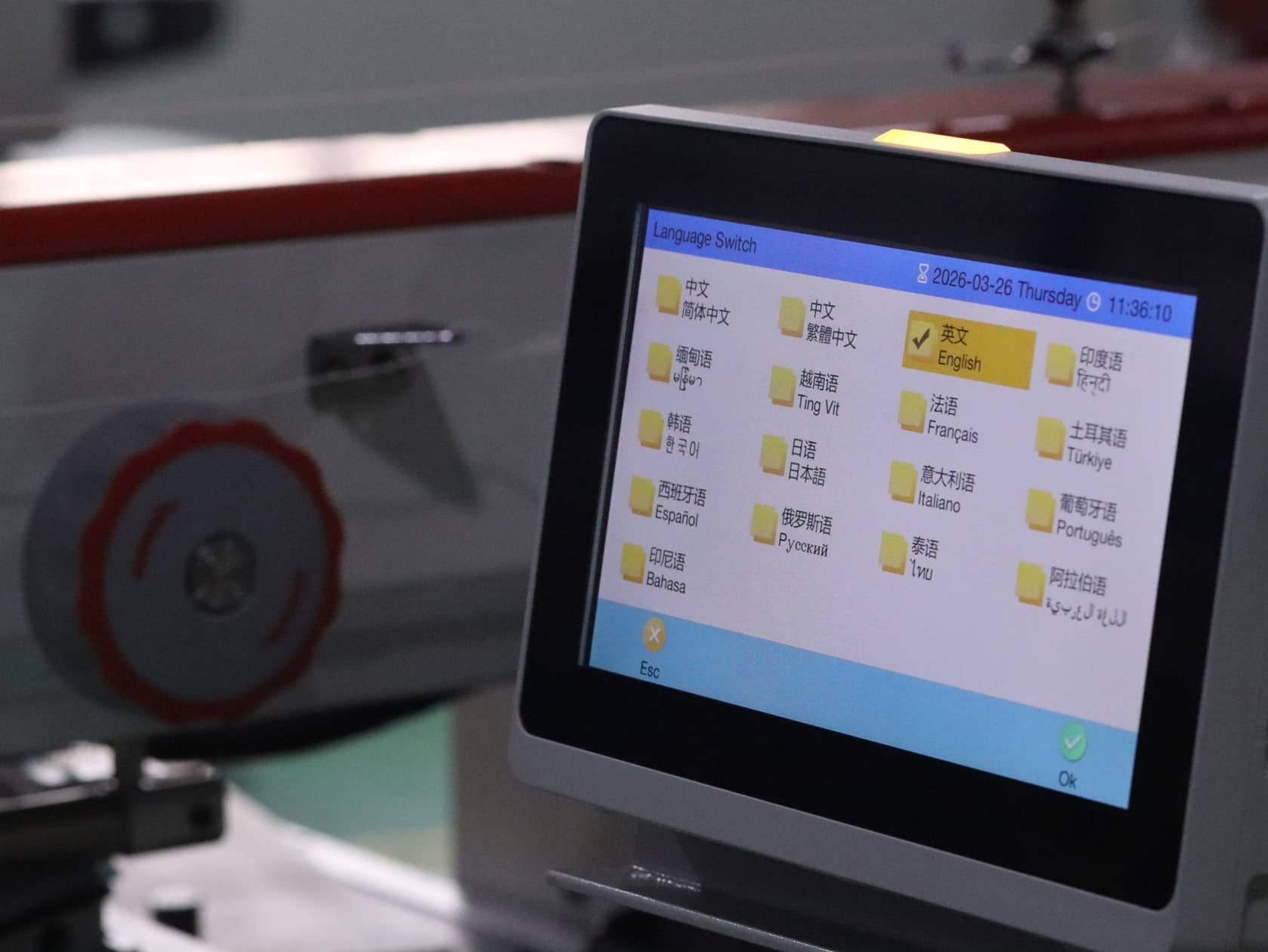

With the handy controls on the operation panel, the user can easily select language (15 different languages), sewing patterns, change sewing speed, set the bobbin thread counter, and store cycle sewing programs in memory;
Newbie friendly pattern making system, it is always a challenge for beginner to create new sewing pattern (design, program), we've got the perfect line-up of easy and beginner-friendly sewing patterns to allow a stress-free, and fun introduction to sewing;
The quick exchange system for sewing clamps allows an overlaping working method. While sewing one clamp you can prepare a second clamp and easily change the clamps after the machine has finished the sewing cycle;
Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);
Hold first stitch capability -- the presser foot comes down to the material and holds the thread when first sewing, reducing the problem of thread tangling up (bird nesting), no need to spend large amounts of time trimming thread and cleaning up nests of thread (long thread tails that have been sewn over);
The integrated thread break sensor stops the sewing cycle when a breakage is detected to minimize waste (Optional);
Barcode reader for tooling recognition & changing pattern number by the barcode, provides high efficiency & avoid operator's mistake with pattern number.

Specifications +

Max. Speed: 2000 rpm
Max. sewing Area: 250x160mm (ASM911-3520: 350x200mm)
Max. Stitch Length: 10MM
Needle: DPX17 #14 to #25
Max.Thread Sizes: Metric#10 (=T-270, V277, 840dx3)
Bobbins: 3 times large capacity
Maximum Foot Lift: 20mm
Max Sewn Thickness: 10mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 1000W/200-240 Volt

Product Information +

ASM911 is one of the most affordable heavy duty automatic pattern sewing machines on the market. It must be said that its price is not synonymous with low quality. Although inexpensive, this CNC pattern sewing machine is made of high quality materials and includes the most innovative sewing technologies, for example Bar-code reader, Presser foot control mechanism, Hold first stitch capability (ensures beautiful corner stitches & neat stitches from the beginning), WiFi device and Treble hook (3 times bobbin capacity). This heavy duty programmable pattern sewing machine has a long needle bar stroke allowing the operator to easily sew 7mm stiff webbing strap with thick thread up to metric size #10 (=V277, 840Dx3). Unleash the power, speed and precision of the ASM911 programmable pattern sewing machine and the results this machine will achieve for your production volume, quality and profit margin will speak for themselves.
