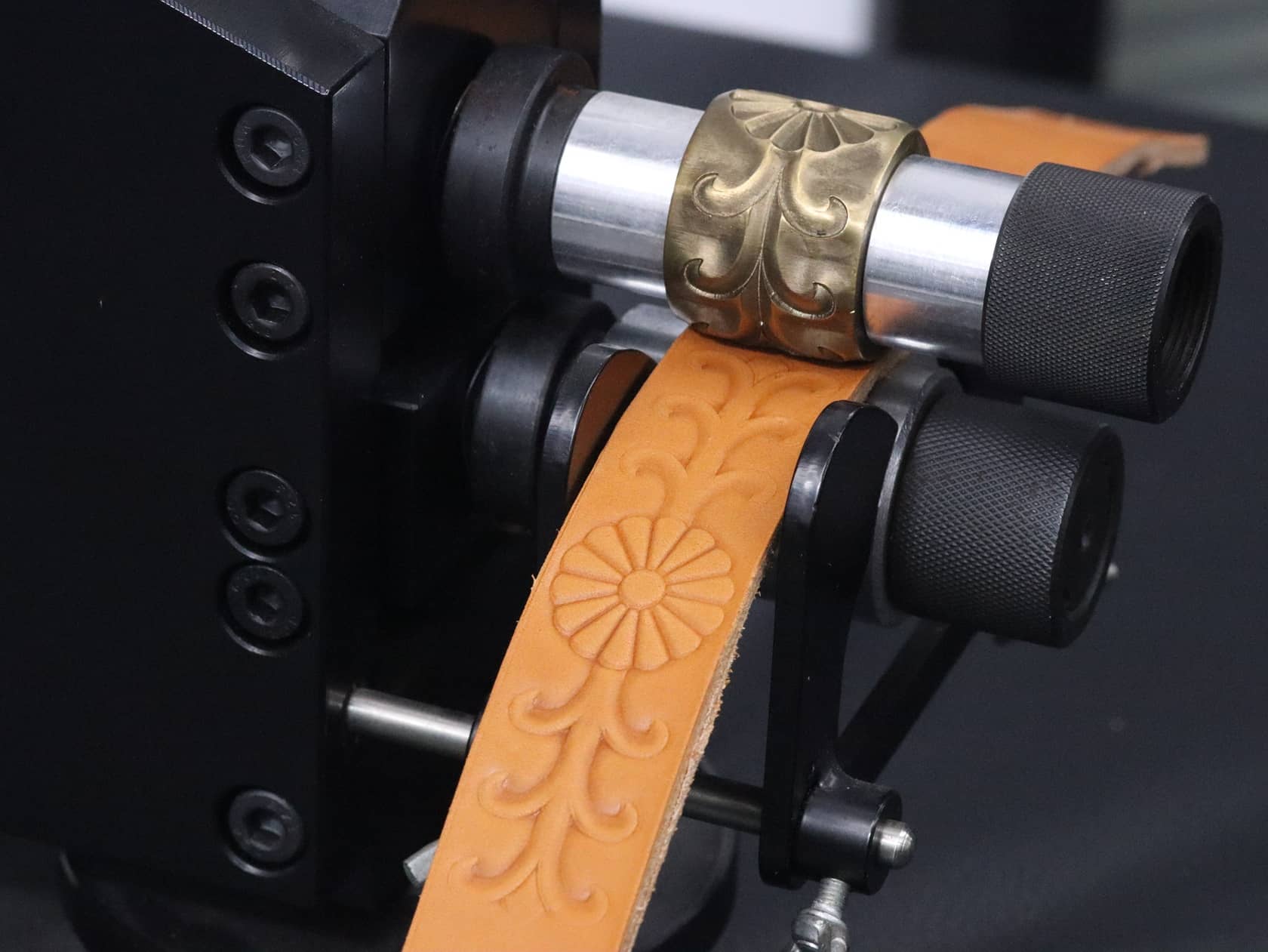

8700 Hand crank leather embossing machine for leather belt and strap trades

Click here for DEMO video

$1,360.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1. This leather embosser is designed to achieve precision quality embossing, creasing, and cutting of leather belts and leather straps;
2. This leather belt roller embossing machine is an invaluable tool for use in any leatherworkers shop: emboss, crease, and cut leather with the simple to use hand crank;
3. Using commonly available dies made widely available in leather industry, any belt or strap can be embossed using this handy bench tool;
4. This leather strap embossing machine has an option for a heated embossing roll with will allow for clearer and crisper patterns to be embossed in many different types of leather;
5. This leather roller embossing machine has an option for a motor drive unit and this can be added to the machine allowing ample production capacity for larger shops;
6. The machine features a pressure adjustment function in which the user can adjust the depth of the embossed pattern as well;
7. We can make for custom leather embossing rolls by any quantity according to your design.

Specifications +

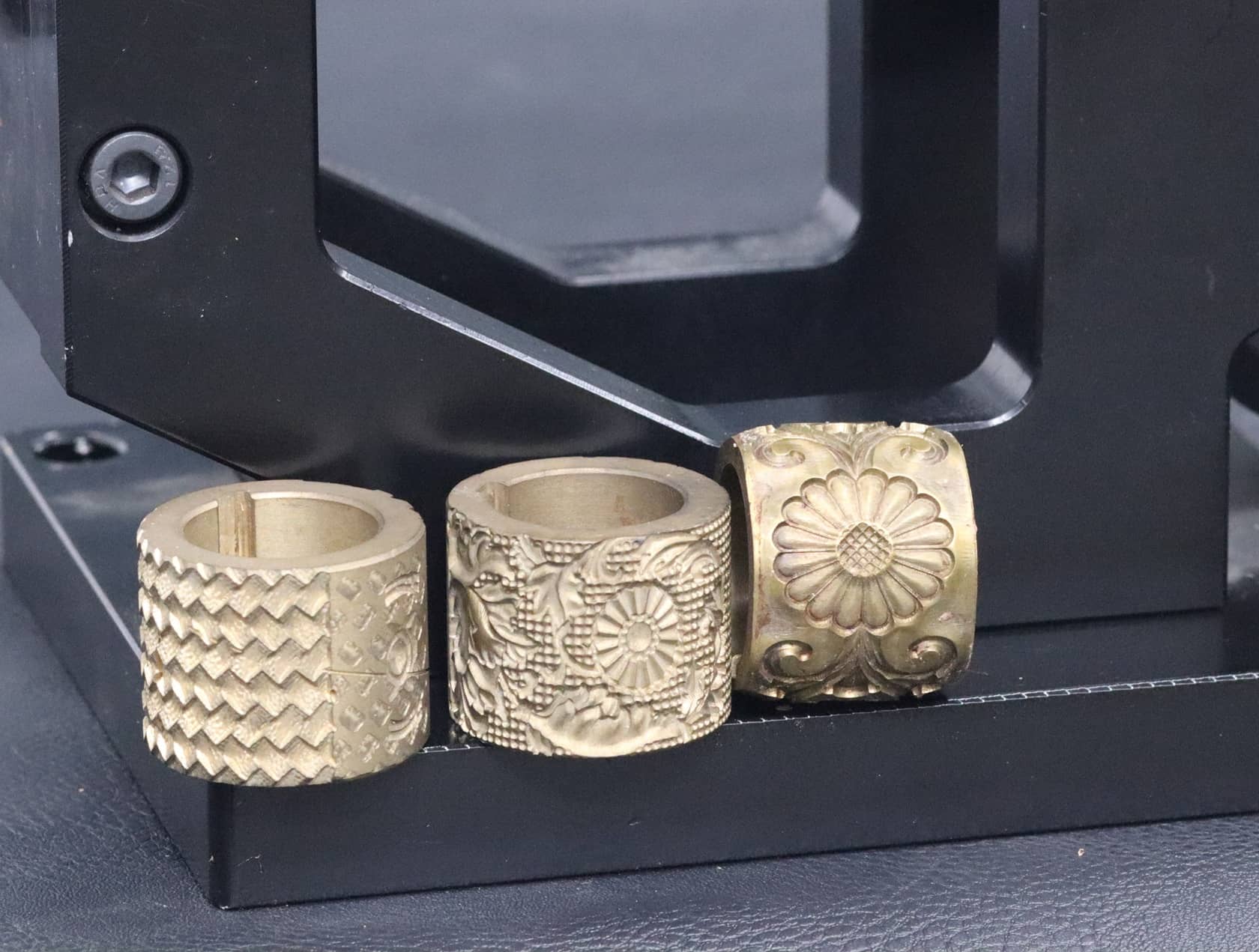

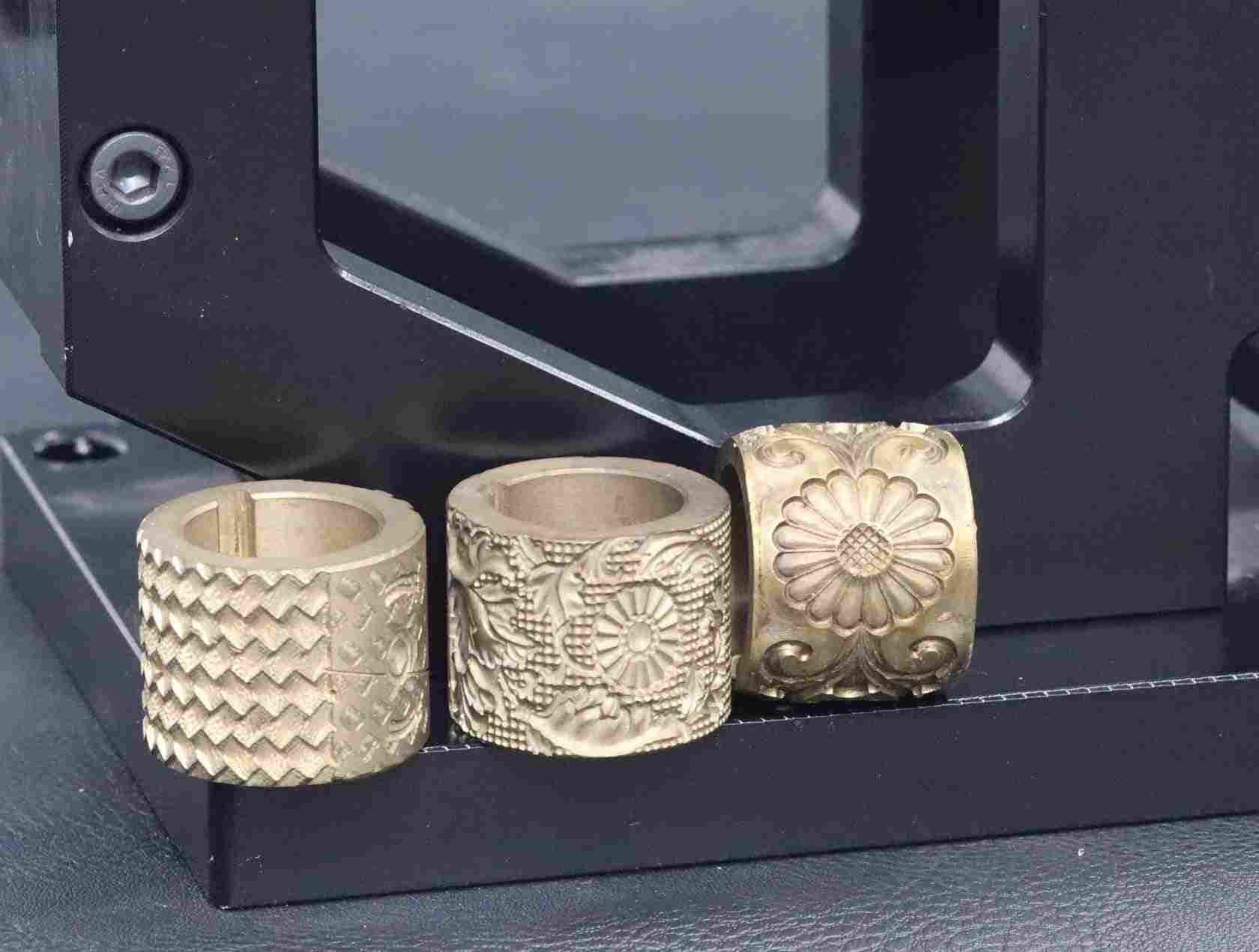

Size of embossing rolls:Outer Dia.:38mm, inner Dia: 25.5mm, Length: 30mm, Keyway:5(depth)x3(width)mm
Material of embossing rolls: High quality brass
Leather type:Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)
Packing size:420x186x268 mm, G.W: 14 KGS

Product Information +

The CB8700 is a hand crank leather embossing machine that accepts the common 1 inch shaft diameter dies used on the Weaver, Tandy, Tippmann and many other machines. This machine can emboss belts up to 1.5 inches in width. The machine features a full 6 inch throat depth to allow for embossing along the borders of all types of leather projects. The 8700 can be used to emboss saddle skirts, wallets, purses, belts, and many other leather items.
