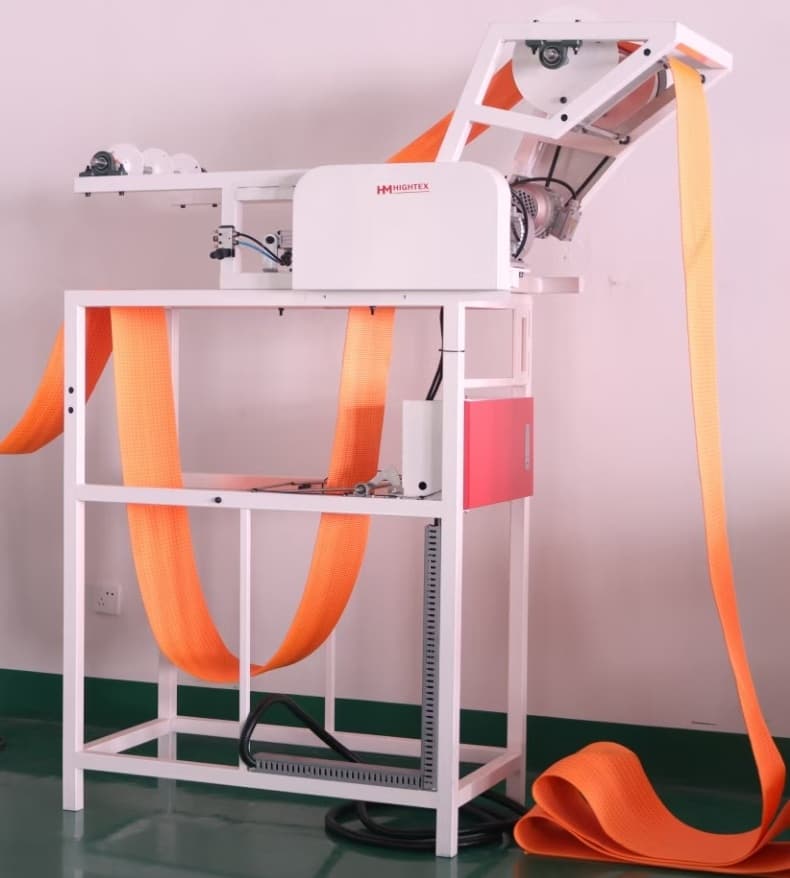

Heavy duty automatic webbing cutting machine

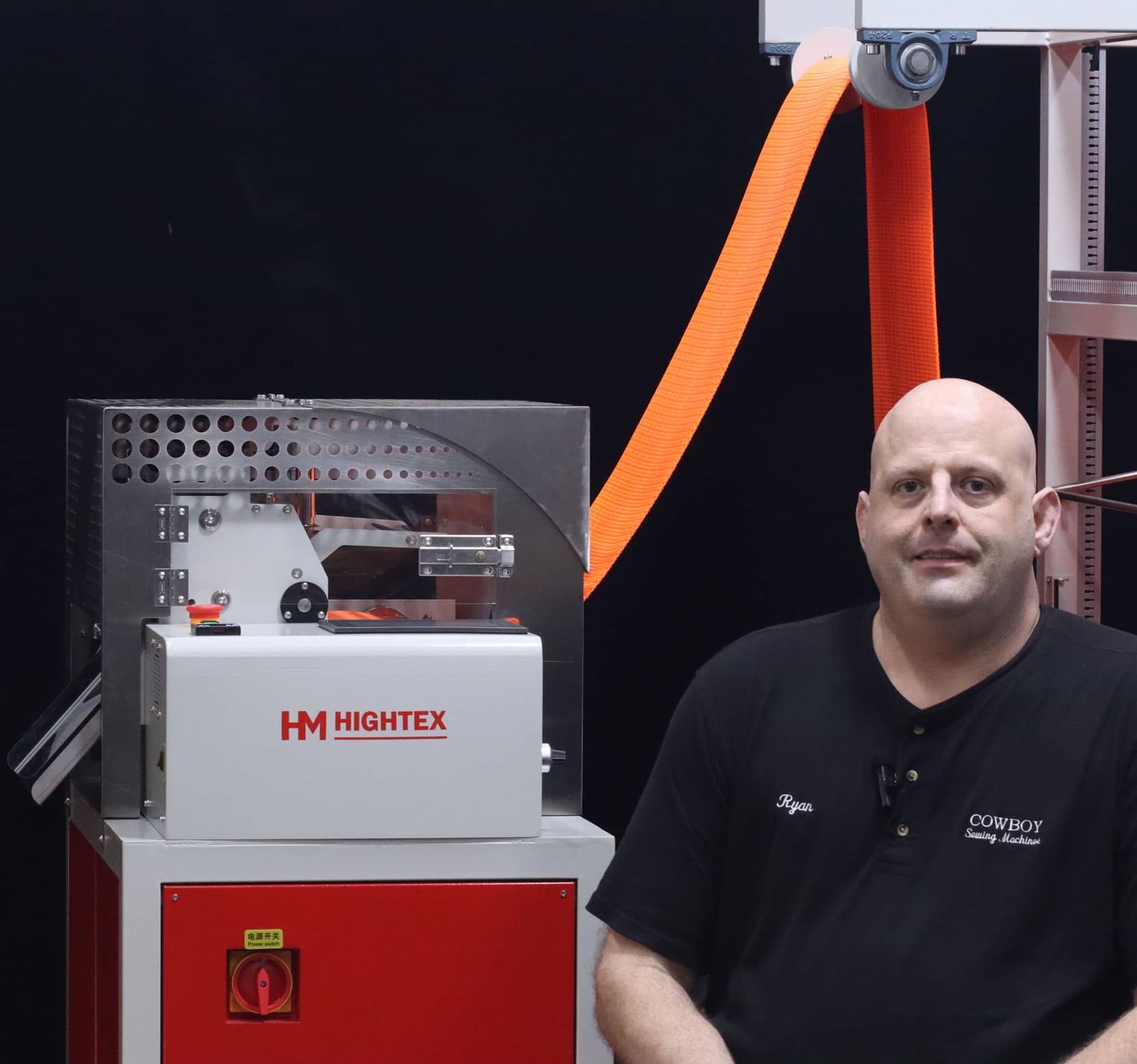

Heavy duty hot knife webbing cutting machine

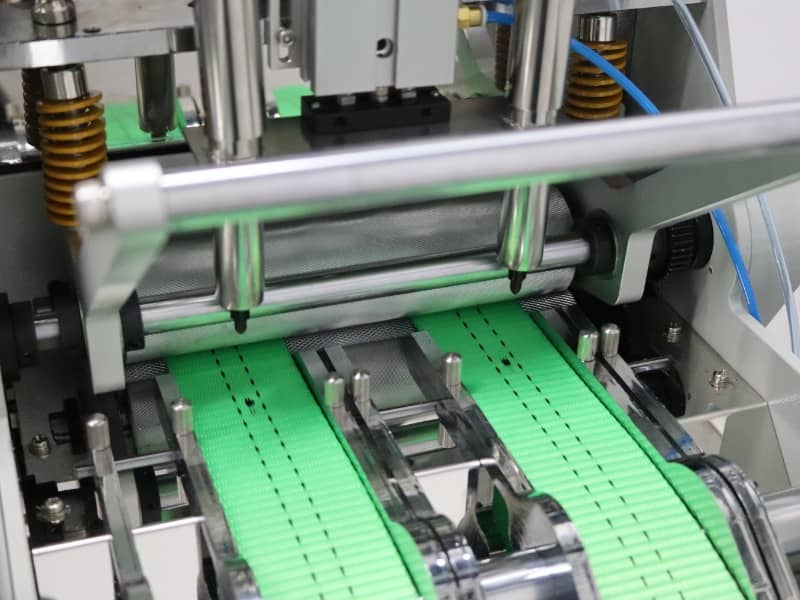

Heavy duty webbing cutting machine with marking

Heavy duty automatic webbing cutting machines thumbnail

Heavy duty hot knife webbing cutting machine thumbnail

Heavy duty webbing cutting machine with marking thumbnail

828ACM Heavy Duty Automatic Webbing Cutting & Marking Machine---One of the best quality webbing cutter with Point-Marker

Click here for DEMO video

$9,650.00, plus shipping

Option:
Automatic feeding equipment (pro-tensioning equipment): $3,000.00

Call us at: 330 692 1418 for more information, or to order

Description +

This heavy duty webbing cutting machine is with upper and lower knives. These hot blades are made of high-quality high-speed steel (heating capability up to 600 ° C is provided);
This cutter has a maximum cutting width of 200mm, allowing the potential for a wide range of materials to be cut. Materials can also be cut parallel to each other to increase productivity;
Because hot knife melts the end of tape, cutting is sealed neatly without fraying, and because the upper knife is fixed and only the knife plate moves up and down, meaning the machine is very durable and long-lasting;
It is possible to turn on the function of applying dot markings with a marker - Marks webbing where the operator is required to sew;
This automatic webbing cutting machine provides dwell time to ensure the thicker material cuts all the way through for a perfect seal;
The knife has a special shape for better melting on both sides;
This automated webbing cutting and marking machine using touch screen which is easier to navigate and provide clear and intuitive settings;
If necessary, it is possible to turn on the device for preliminary feeding of the material, which ensures the stability of the tape tension at the moment of pulling it through the cutting machine, minimizing the possibility of jerking.

Specifications +

Max. cutting width:200mm
Cutting length: 100mm to 500000mm
Max.temperature of blade:600C
Program storage: 30 programs
Time delay:1 to 1.5 second per cutting
Power: 2800W
Max. quantity marking point: 90 per cutting
Max cutting thickness: 5mm thick webbing or 16mm rope
Quantity of hot blades: 2 (Top and bottom hot knives)
Cutting tolerance: +2mm / -2mm
Packing size(assembly):700X570X1340mm, G.W: 148KGS

Product Information +

We are frequently asked about the performance of our 828ACM, a machine designed for marking and cutting webbing used in lifting slings, lashing straps, safety harnesses, climbing ropes and other industrial sling applications. How good is it and can it really reduce labor costs?
A valuable equipment to increase the efficiency of your business!!
This machine can be used with straps that have thicknesses ranging from 2 to 16 mm, and widths ranging from 35 to 200 mm. This automatic webbing cutting, marking and measuring machine, designed for maximum performance, will reduce labor costs in your company.
