806 Leather splitter|Leather crafting tool for handmade leather workshop and saddlery

Click here for DEMO video

$280.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

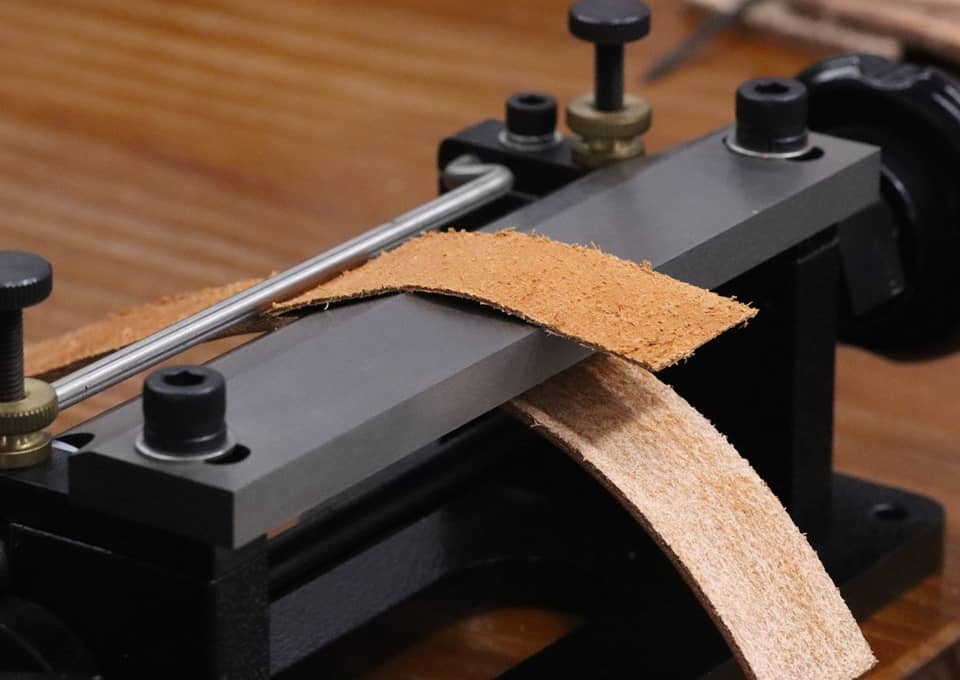

The 806 leather splitting and skiving machine is an excellent choice for the leatherworker on a budget that requires a very sharp, efficient leather craft tool for doing a multitude of leather splitting operations around the workshop;

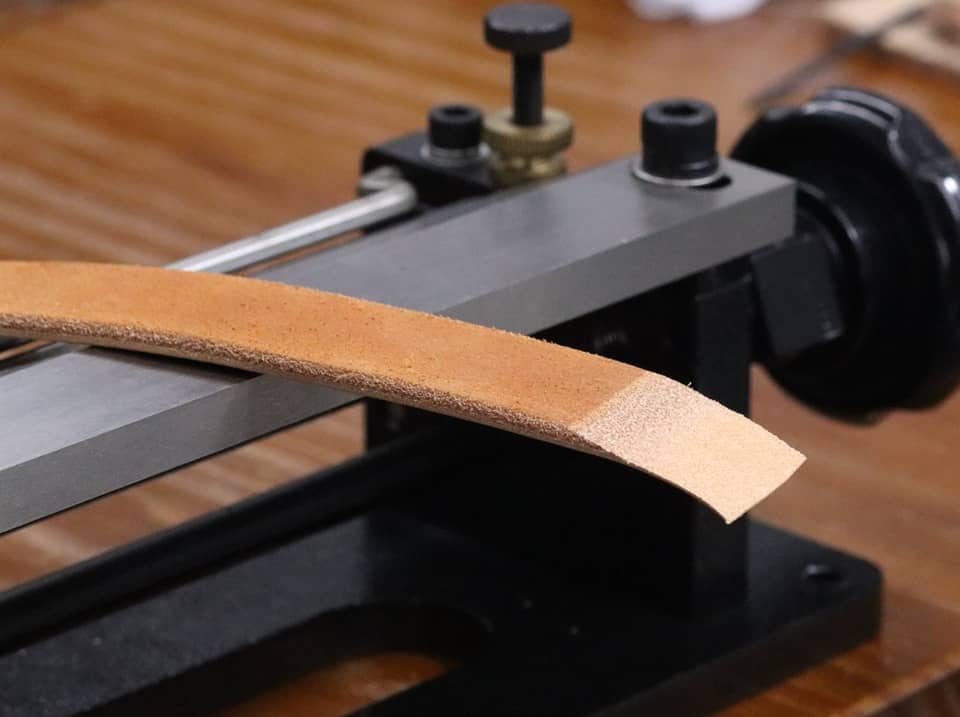

Featuring the ability to do both lap skives (tapered skives) and level skives (same thickness throughout length) this machine will prove to be a workhorse in any leather workers shop;
Each blade is hand sharpened by hollow grinding by our expert craftsman to produce a blade edge that is razor sharp. Each blade is heat treated to a Rockwell hardness of Rc 65-68 which insures that the machine will hold an edge over many hours of use;
The 806 series machine features adjustable depth stops on BOTH sides of the machine allowing the user to maintain an even thickness of skive across the width of the piece;
A handy spring action on the left hand side of the machine allows the handle to recoil back after the operator let's go of the handle setting the machine for inserting the next piece of leather;
An ultra convenient cam brake on the right hand side of the machine allows the user to lock the handle in place for using both hands to pull the leather through. This feature is normally found on leather splitters costing much more money.

Specifications +

Length of blade:150mm
Optimal splitting width: 10-50mm
Minimum skiving thicknes:1mm
Leather type:Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)
Material of blade::High speed steel (HSS)
Packing size:330x190x190mm, G.W: 4.8 KGS

Product Information +

The CB8360 is a great machine for those persons looking for an economical, yet heavy duty leather clicker press that can cut through thick leather with dies as big as 6x6 inches. This press features a swing beam design that allows the cutting ram to swing out of the way for easy loading and unloading of the press and precise die placement. A simple, rugged built design and strong frame insure this press will last for decades of continual and hard use. The ram on the press is also height adjustable to allow for different thicknesses of cutting dies. A great machine for those craftsmen getting started into die cutting.
