Low Speed Leather Sewing Machine Servo Motor

Low Speed Leather Sewing Machine Servo Motor thumbnail

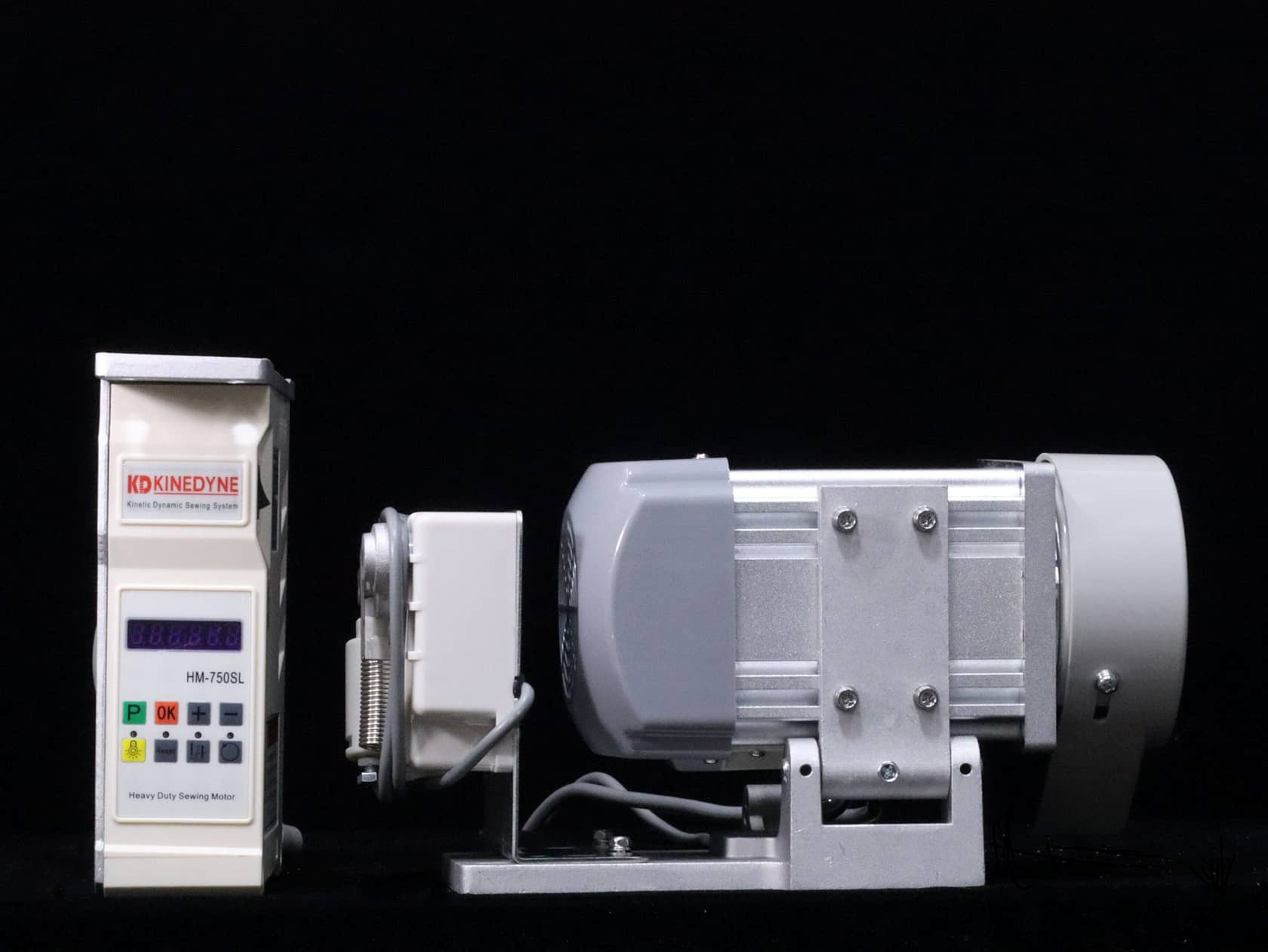

Kinedyne HM-750SL Low Speed, Robust Servo Motor for Medium Weight Leather Sewing Machine - Perfect Speed Control

Click here for DEMO video

$300.00, plus shipping

Options:
Needle Positioner: $50.00
JOG dial: $75.00
Half stitch buton: $50.00
Low speed button: $50.00

Call us at: 330 692 1418 for more information, or to order

Description +

Minimum 50 RPM low speed allowing you to slow down your machine to stitch by stitch, completely eliminates the need for a now obsolete, "Speed Reducer";
Maintains full power (750 Watts) and torque (7.9 Nm) even at low speed, esure gently and smoothly stitch even sewing super hard leather & technical textiles;
Photoelectric sensor (instead of Hall sensor used in other cheap servo motors) assures stable & accurate speed control;
Unique two stage speed control to facilitate the sewing operation: half heeling to lift presser foot, full heeling to lift presser foot and needle;
100% copper coil & quality component assuring you many years of trouble-free performance;
The advanced needle position synchronizer not only allows you to stop the needle in various set positions, also can work perfect in combination with speed reducer;
Absolutely silent with no vibration noise or buzzing like other models on the market, creating a more pleasant work environment;

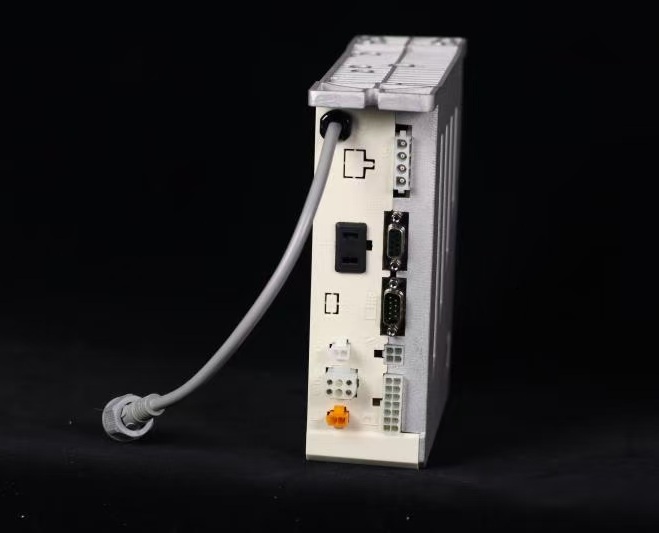

The sophisticated controlbox provides signals for automatic sewing functions such as auto presser foot lifter, auto reverse, needle cooler, and auto puller mechanism;
User-friendly features like a Soft Start function, “Jog-Dial”, Half-Stitch etc.

Specifications +

Lowest Speed: 50 rpm
Max. Speed: 2500 rpm
Power: 750W
Max. torque:8.6 Nm
Voltage: 110V
Warranty:12 months
Packing size: 335X305X280MM, 8 KGS

Product Information +

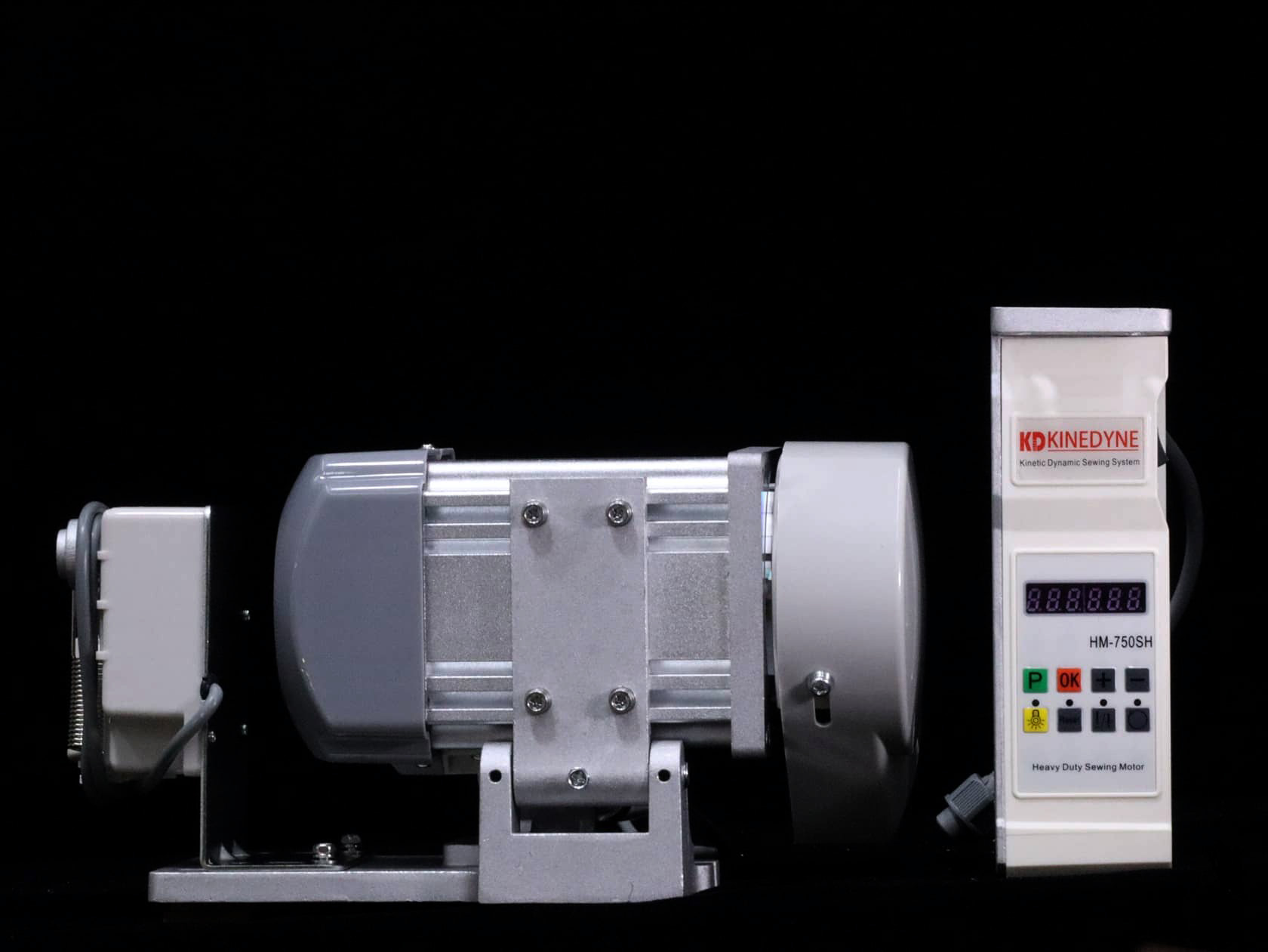

While HM-750SL can easily drive most medium and heavy duty leather stitchers and is perfect for the use of hobbyists and small production shops, large scale manufacturers whom are using the sewing machine motor for hours and hours per day on multiple shifts may need a little more assurance and protection. High heat build up from 10-12 continuous hours of operation every day may affect the lifespan of the motor, so we recommend our HM-750SH for such high demand applications. We improved the computer control board with an overheat controller which keeps the motherboard and interior control box components running cool to prevent overheating. In addition, we equipped this motor with with ports and firmware to drive an automatic presser foot lifter, needle cooler and automatic reverse. Under advisement by some of our experienced dealers from around the world,we created some user-friendly features, like a Soft Start function, “Jog-Dial”, Half-Stitch etc. All of these features make the HM-750SH low speed powerful servo motor one of the most complete and sophisticated motors in the market today!!
Many leatherworkers still use a speed reducer unit in addition to a servo motor to provide for the best control and punching power for adverse situations. The addition of a speed reducer can make the handwheel on the sewing machine very hard to turn, and it presents another area of potential failure and maintenance as it requires the use of an additional belt and pulley system. With the HM-750SH servo motor, the speed reducer pulley system can eliminated in many sewing applications.
In terms of performance and reliability, the HM-750SH is the best leather sewing servo motor on the market today!!
