71008G New Heavy Duty Automatic Safety Harness and Rope Sewing Machine

Click here for DEMO video

$15,950.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

The large Barrel shuttle hook that has been specially designed for sewing very heavy materials and thick thread;
The special large bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

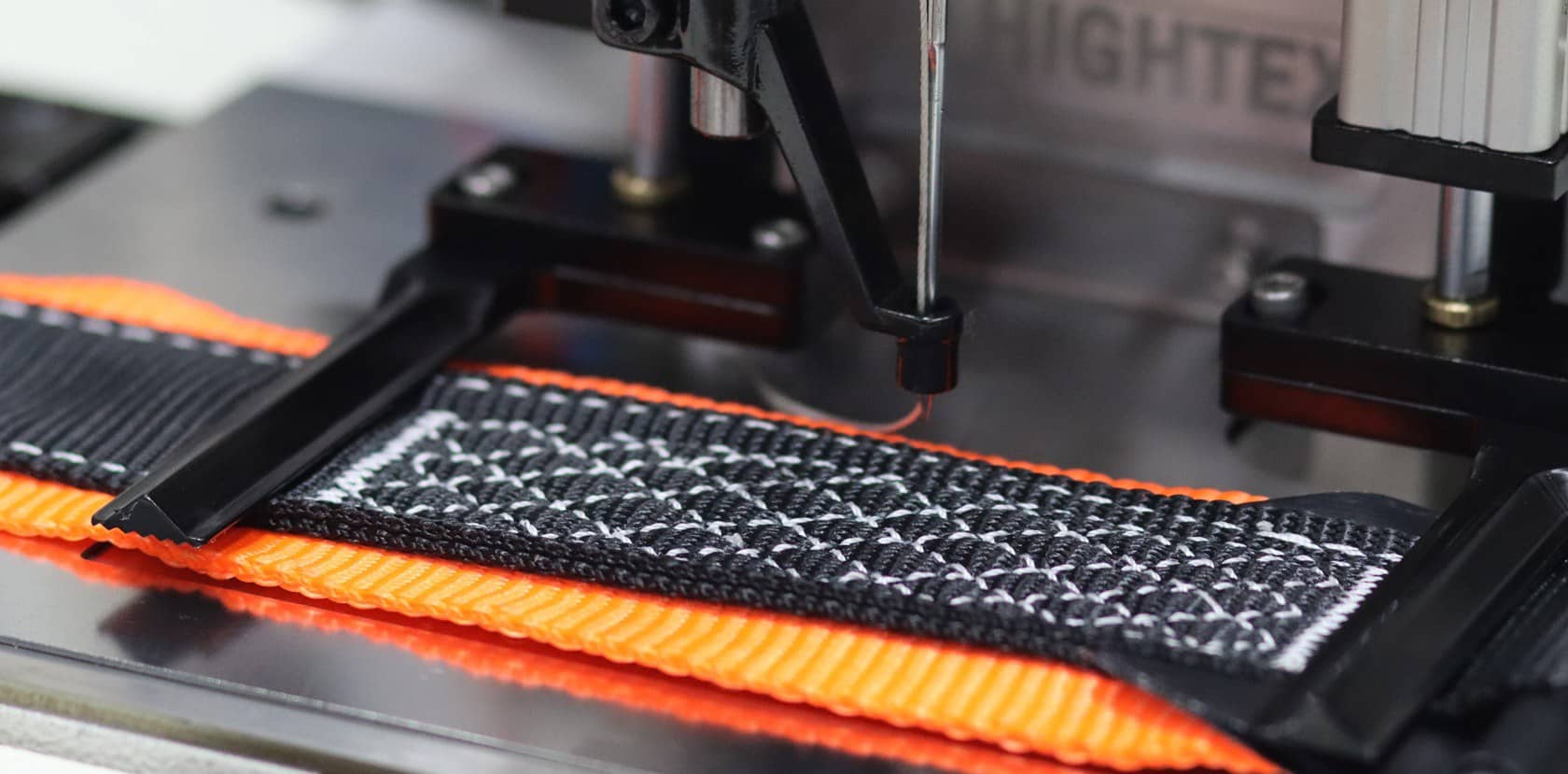

The sophisticated clamp tightly hold the rope in all direction that avoid jumping or moving during the sewing. HighTex is the only maker of machine that offers this type clamp;
The thread trimmer offers outstanding reliability and durability to trim very thick thread;
Excellent stitch pattern and constantly tight stitch formation due to its advanced pneumatic system, strong needle penetration force and custom made fixture;
Newbie friendly pattern making system, it is always a challenge for beginner to create new sewing pattern (design, program), we've got the perfect line-up of easy and beginner-friendly sewing patterns to allow a stress-free, and fun introduction to sewing;
Each machine supplies with comprehensive spare parts package that allow you to service, maintain and repair the machine for long time without the need to buy spare parts;
Over 20 years of combined experience in servicing and repairing, there is no problem that we cannot solve by email or video conference, that will insure your machine can be serviced with minimal downtime.

Specifications +

Max. Speed: 600 rpm for pattern sewing, 300rpm for bar-tacking
Max. sewing Area: 130x60mm
Max. Stitch Length: 12.7MM
Needle: 794 (DYx3) #26
Max.Thread Sizes:Metric #7, V415, T-400, 1300dx3
Bobbins: 7/8" x 1" large capacity
Maximum Foot Lift: 1 1/16"
Max Sewn Thickness: 22mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 1000W/200-240 Volt

Product Information +

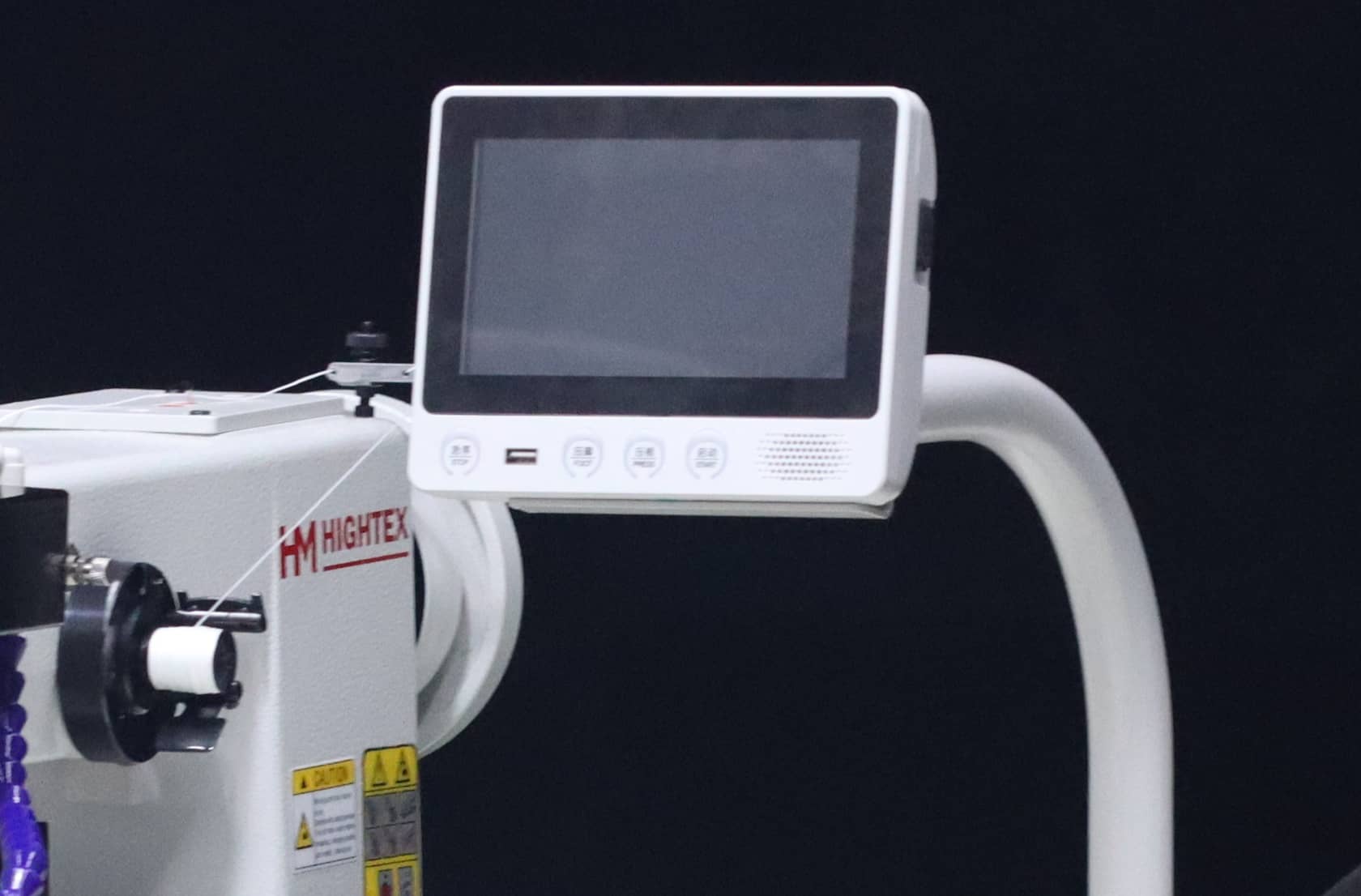

The 71008R heavy duty automatic pattern sewing machine introduced in 2006 has been a consistent BEST seller for customers sewing climbing rope, safety harness, and large dog leash. It's one of the highest rated machines in this class with a large worldwide following. The quality and fit and finish of this heavy duty programmable pattern machine is very well regarded, and it rivals that of its European counterparts. Today we are still supplying parts for machines delivered 20 years ago. The only complaint of this robust bar-tack sewing machine is the electronic system: the keyboard operation now is obsolete, it is always a challenge for beginner to create new sewing pattern. That's why we upgrade 71008R with most advanced CNC system (71008G), the intuitive touchscreen controls with visual pattern editing capabilities, and we've got the perfect line-up of easy and beginner-friendly sewing patterns to allow a stress-free, and fun introduction to sewing. Besides 71008G comes with automatic thread trimmer to improve productivity, and reduced labor costs.
