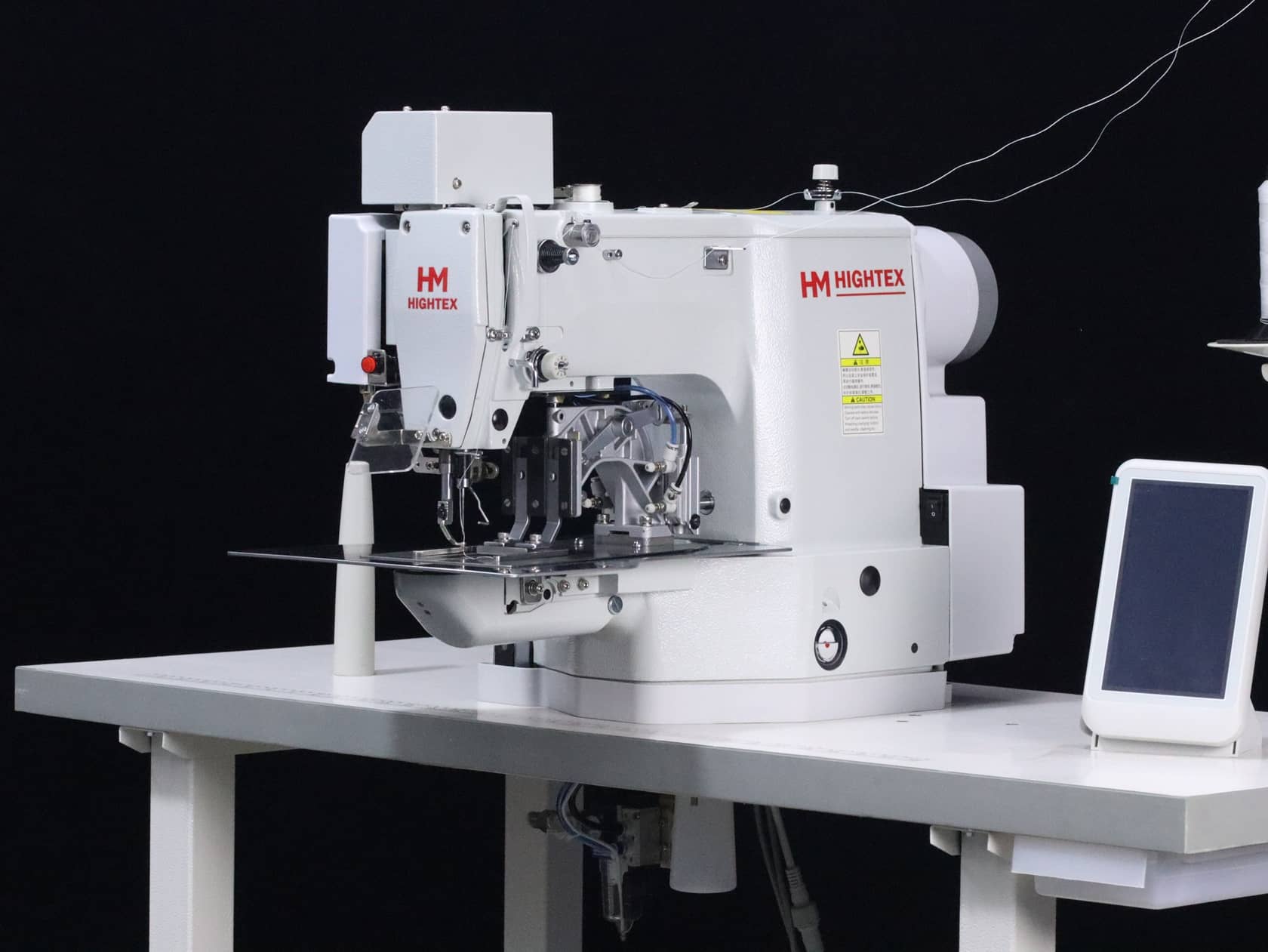

680HM Heavy Duty Electronic Bar Tacker / Box X Pattern Sewing Machine with BIG Bobbin, Perfect for Harness and Webbing Nets

Click here for DEMO video

$12,950.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

Up to 60x80mm sewing area, widely used for sewing box X patterns on a variety of materials from knits to denim to multiple layers of webbing;

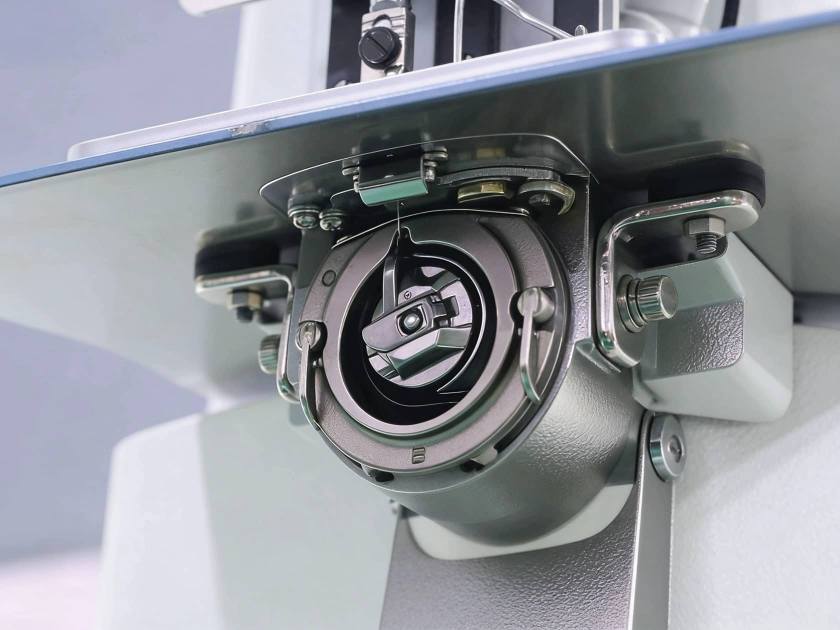

This particular machine has a BIG hook and bobbin factory-installed giving you more than double bobbin thread capacity then its competing models;
Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);
Thanks to its high sewing speed and unique thread trimming mechanism, the cycle time is substantially decreased, enhancing productivity and efficiency;
This machine features an on-board LCD touch screen control panel with programming functions and pattern editing options;
Needle thread grasping mechanism helps produce consistent knot tying at the beginning of sewing;
We have in-house technicians who have over 20 years of combined experience with heavy duty sewing equipment, if you're looking to automate your sewing application and lower labor cost we can help. Our expert advisors are ready to help guide you through the process.

Specifications +

Max. Speed: 3000 rpm
Max. sewing Area:60mmX80mm
Max. Stitch Length:10MM
Needle:DPX17#18
Max.Thread Sizes:Metric #15 (=V207, T-210, 630dx3)
Maximum Foot Lift: 17mm
Max Sewn Thickness: 10mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 750W/200-240 Volt
Packing size: 1230x123x1440MM, G.W: 190 KGS

Product Information +

This compact medium weight bar-tack sewing machine is with a max sewing field of 60mm x 80mm, which allow to tack most sizes of harnesses,seat belts, tactical gear, dog collar and lanyards. This bar-tack sewing machine has a long needle bar stroke allowing the operator to sew medium-weight and tough materials like leather, canvas, and denim. It has been proven to withstand heavy use without needing unscheduled service. Another advantage compare to other bar-tackers in today market is the double bobbin capacity shuttle hook allow to using thicker sewing thread, and reduces the frequency of bobbin-thread changing to enable highly efficient sewing work. By setting the machine to automatically raise and lower the presser foot ensure uniform thread tightness (even thickness of material has been changed). This electronic bar tacker priced lower than others on the market, offers average European quality standards.
