204-370 Heavy Duty Triple Feed Sewing Machine for Webbing and Leather

204-370 Heavy Duty Triple Feed Sewing Machine for Webbing and Leather thumbnail

Heavy duty Upholstery Sewing Machine thumbnail

Low seed powerful sewing machine motor thumbnail

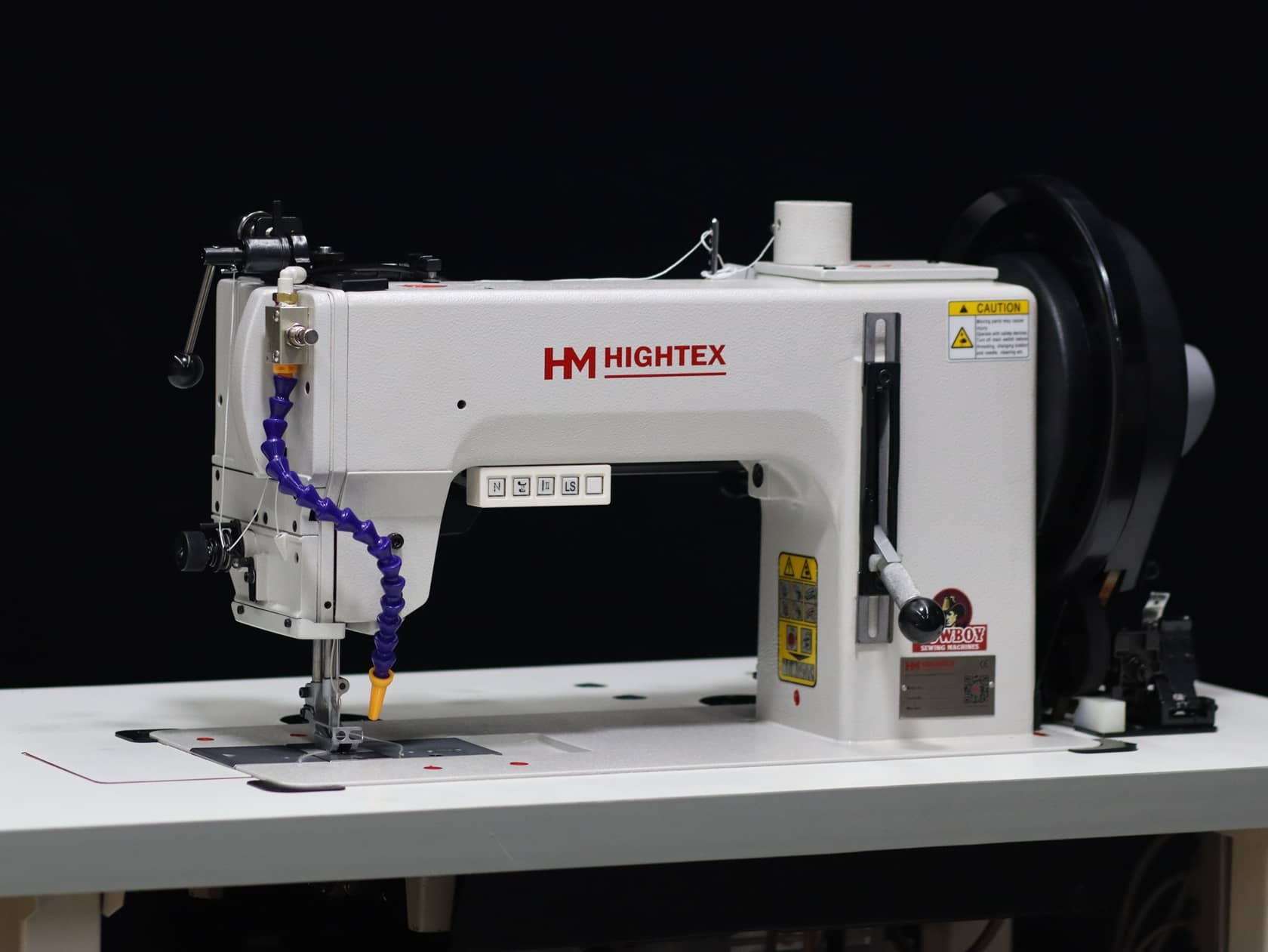

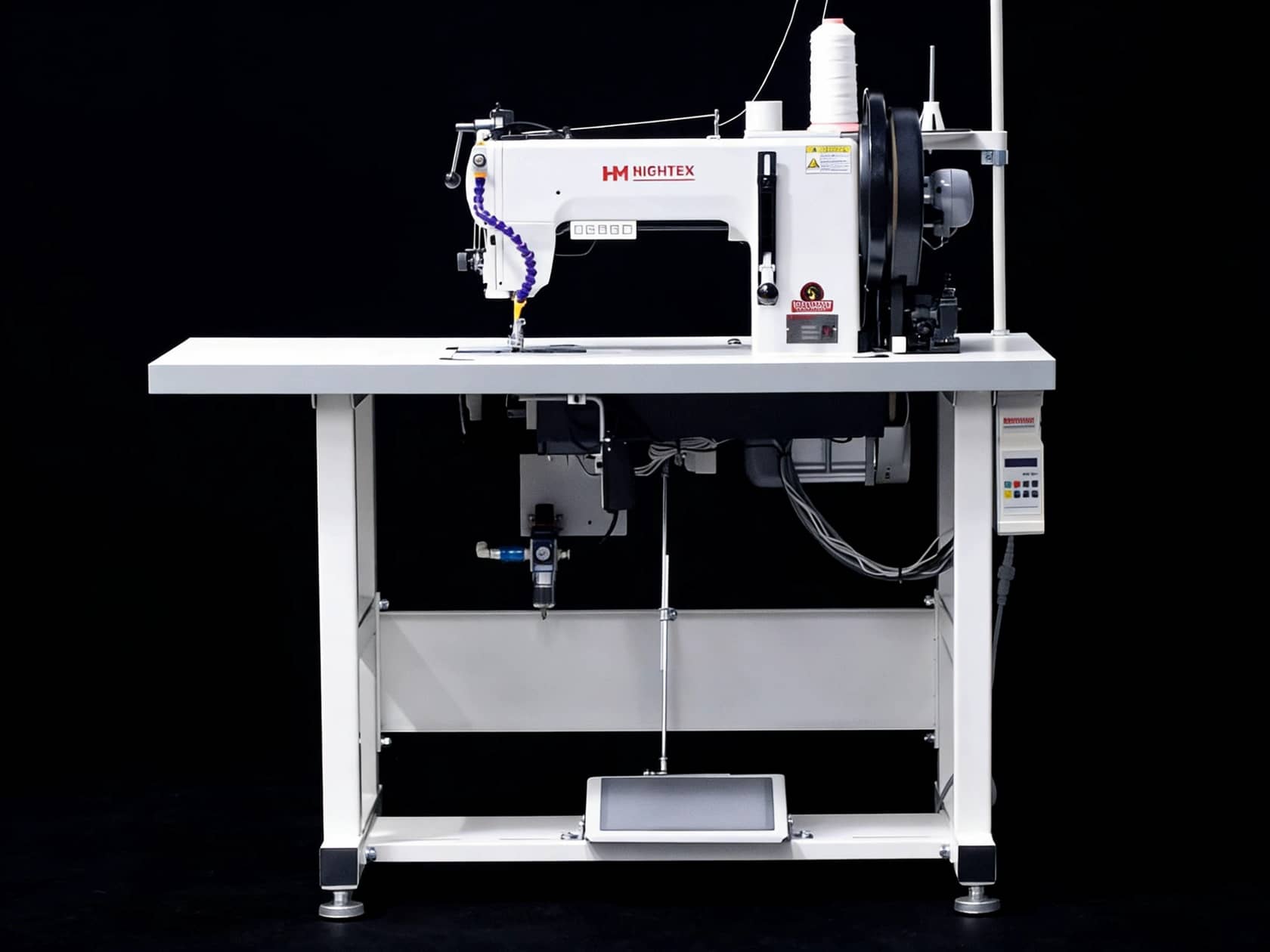

204-370 Extra Heavy Duty Walking Foot Industrial Sewing Machine with Large Barrel Shuttle Hook for Very Thick Threads and Heavy Materials

DEMO video for sewing webbing slings
DEMO video for decorative stitching

$4,360.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximizing production output and profit margins. When purchasing sewing equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.

At HighTex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility. Because we never compromise on quality, our equipment undergoes rigorous testing and preparation to ensure flawless performance. Thank you for your patience; we are dedicated to building the perfect, reliable machine for your business.

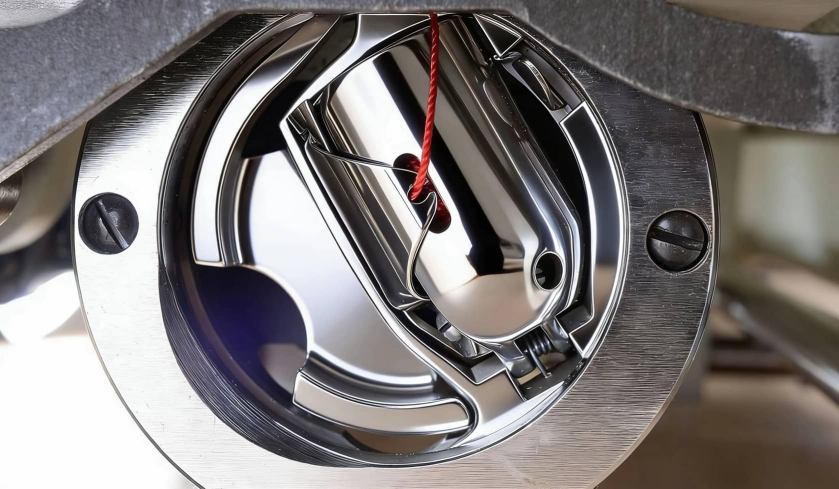

Long sewing cycles by Barrel shuttle hook with large bobbin capacity, even sewing with extremely thick thread;
The presser foot has an extra high lift and can go up to 20mm, allowing for a large range of extra heavy weight material or bulky items to be used;
Excellent climbing properties guarantee easy sewing thick spots or overlapping cross seams, without skipped stitch. The great advantage of 204-370 becomes especially apparent when processing topstitching seams in leather goods or in the furniture upholstery;
Up to 14 mm long stitches for assembly and decorative seams;

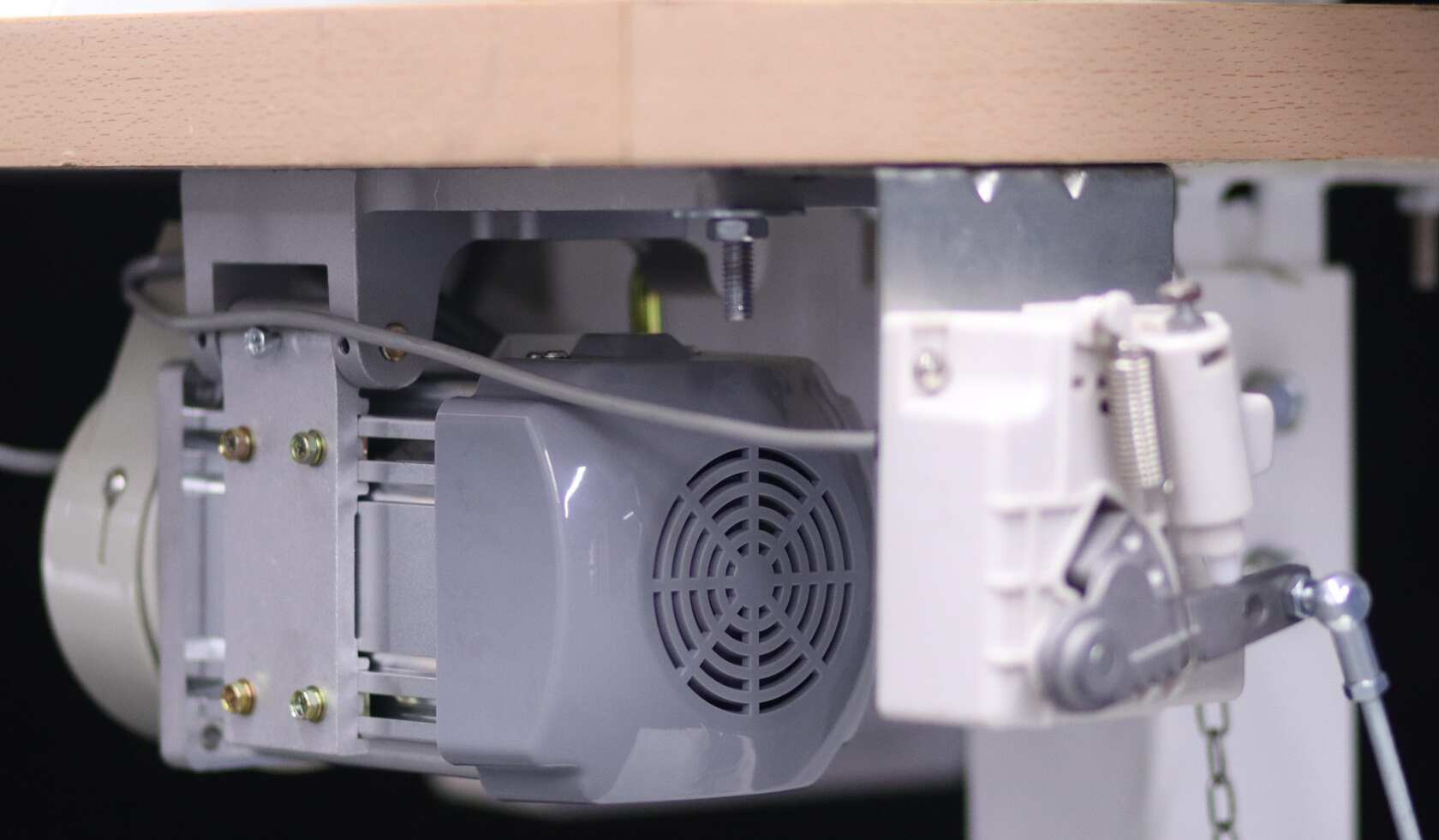

Particularly user-friendly due to the Kinedyne HM-750SH one horse power servo motor that allows slow, controlled stitching;
Standard supplied with needle positioner that automatically stops the needle in the Down and Up position, good for improving efficiency;
A full array of special sewing attachments are available for high productivity and perfect seam quality.

Specifications +

Max. Speed:800 spm
Max. stitch Length:14mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
Presser foot alternating:10
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:triple feed
Clearance room:320mm (L) x 185mm( H)
Packing size(head)770x620x520MM, 85KGS

Product Information +

Built for professionals who demand a flawless aesthetic finish alongside the power and precision of German engineering, this machine excels at processing three-dimensional workpieces made of the heaviest materials. The flatbed can be extended to 420mm upon request to provide maximum clearance. Thanks to optimized sewing kinematics and a robust triple-feed system, this reliable machine delivers a consistently first-class stitch pattern, while its large barrel shuttle handles thick threads effortlessly. For maximum versatility, all parts are fully interchangeable with the Dürkopp Adler 204-370, and a complete array of specialized sewing attachments is available to boost productivity and ensure perfect seam quality. Additionally, the user-friendly design features a 1-HP Kinedyne HM-750SH servo motor, allowing for slow, controlled stitching that makes intricate, detailed work effortless.
